How To Inject PA66 GF Materials?

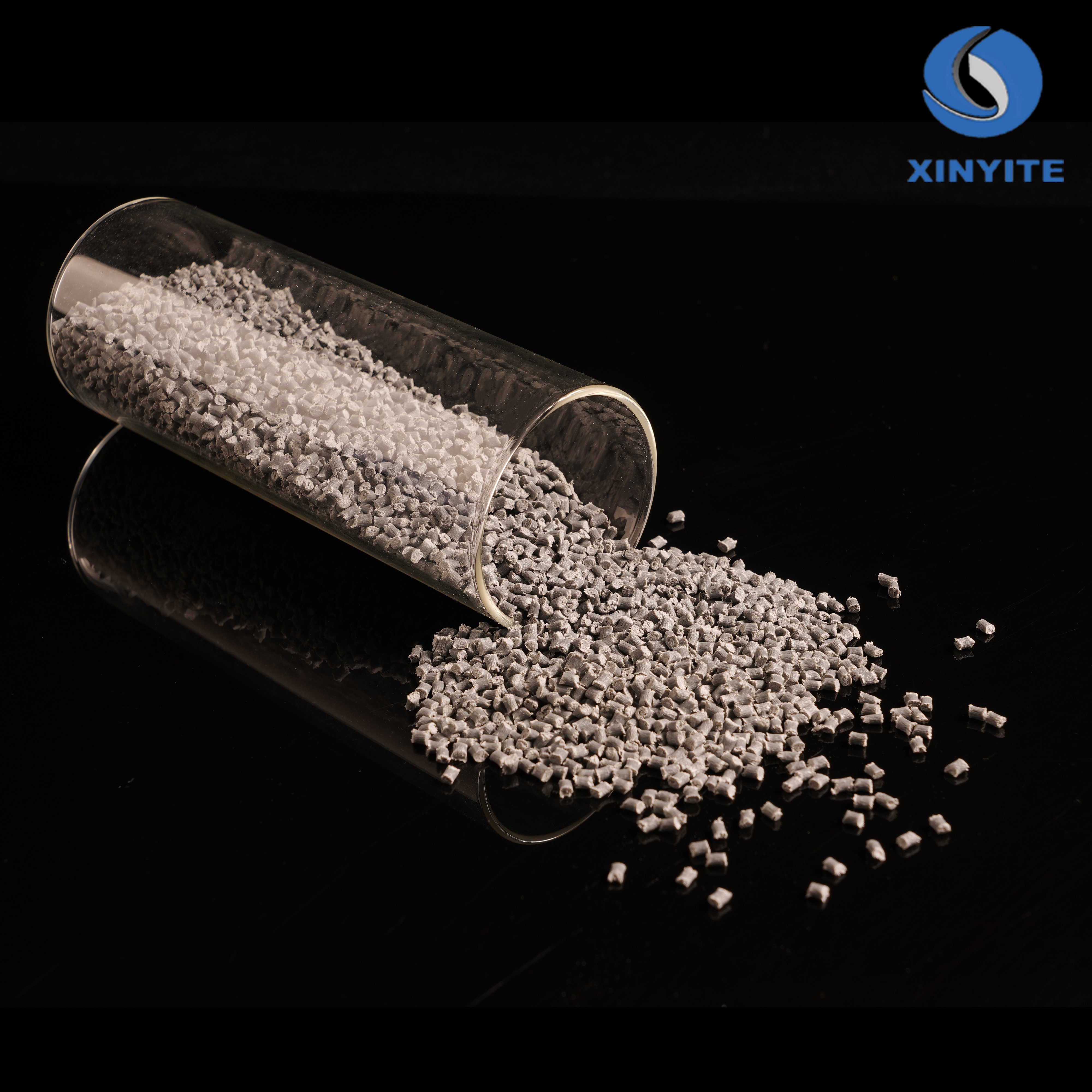

Polyamide 66 (PA66) with glass fiber reinforcement, also known as glass-filled nylon 66, is commonly used in injection molding due to its enhanced mechanical properties. The injection conditions for PA66 with glass fiber can vary depending on the specific formulation and part design, but general guidelines include:

Injection Molding Conditions:

      1. Drying:

            Temperature: 80-100°C   (176-212°F)

            Time: 4-6 hours  (minimum), up to 10-12 hours for optimum results.

            Moisture Content: Should be below 0.2% before processing.

2. Melt Temperature:

            Range: 280-300°C  (536-572°F)

            Note: Higher glass fiber content may require higher melt temperatures.

       3. Mold Temperature:

            Range: 80-100°C  (176-212°F)

            Note: Higher mold temperatures can improve surface finish and dimensional stability.

        4. Injection Pressure:

            Range: 80-140 MPa  (11,600-20,300 psi)

            Note: Adjust  based on part geometry and size.

        5. Injection Speed:

            Range: Moderate to high injection speeds are generally recommended to ensure proper filling and minimize glass fiber breakage.

        6. Holding Pressure:

            Range: 50-80% of the injection pressure.

            Note: Optimize to prevent sink marks and ensure proper packing.

        7. Cooling Time:

            Range: Depends on the part thickness, typically 20-60 seconds.

            Note: Uniform cooling is crucial to avoid warpage and ensure dimensional stability.

        8. Back Pressure:

            Range: Low to moderate (2-5 MPa or 290-725 psi).

            Note: Helps in uniform mixing and reduces air entrapment.

Additional Considerations:

• Shear Rate: Avoid excessively high shear rates to prevent degradation of the polymer and glass fiber.

• Flow Length: Consider the flow length-to-wall thickness ratio; higher ratios might require higher injection pressures.

• Ventilation: Ensure adequate mold venting to prevent gas traps and burn marks.

• Regrind Use: Limited to a certain percentage (usually around 20-30%) to maintain mechanical properties.

These conditions are general guidelines and may need to be adjusted based on specific machine capabilities, part design, and detailed material specifications from the supplier. Always refer to the material data sheet provided by the manufacturer for the most accurate and tailored processing parameters.

The injection temperature for PA66 (Polyamide 66) with glass fiber reinforcement typically ranges between 280°C to 300°C (536°F to 572°F). However, the optimal temperature can vary based on the specific grade of PA66, the percentage of glass fiber content, and the requirements of the particular part being molded.

Injection Temperature Guidelines:

Standard Range:

1. Melt Temperature: 280°C to 300°C (536°F to 572°F)

2. Higher glass fiber content may require temperatures on the higher end of this range to ensure proper flow and fiber distribution.

3. Material Specific Adjustments:

   Lower Glass Fiber Content (up to 30%): 275°C to 290°C (527°F to 554°F)

   Higher Glass Fiber Content (30% and above): 285°C to 305°C (545°F to 581°F)

Considerations:

    Consistency: Maintain a consistent melt temperature to avoid variations in the final product quality.

    Degradation: Avoid temperatures significantly above 300°C to prevent thermal degradation of the polymer.

    Machine Settings: Ensure the injection molding machine is capable of maintaining these temperatures uniformly.

    Manufacturer Recommendations: Always refer to the specific recommendations provided by the material supplier, as they may have tailored guidelines based on their formulation.

Adjustments might be necessary based on the complexity of the part design, wall thickness, and flow length to ensure optimal processing and final part quality.
